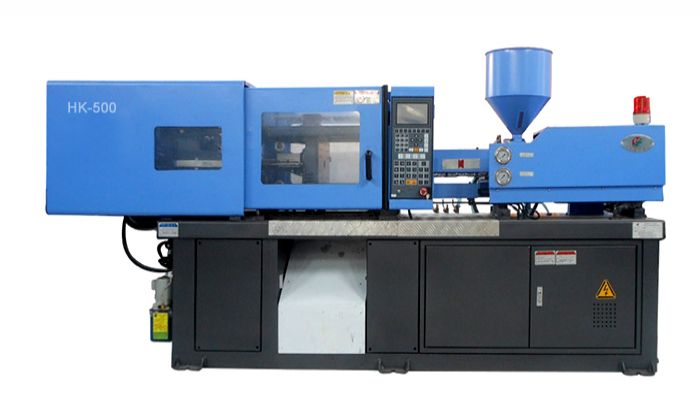

HK-500
|
|
Description |
Unit |
Technical Parameters |
|
Screw Diameter |
mm |
28 |
30 |
|
Injection Capacity |
cm3 |
65 |
75 |
|
Injection Weight |
g |
59 |
68 |
|
Injection Rate |
g/s |
28 |
33 |
|
Plasticizing Capacity |
g/s |
7.2 |
8 |
|
Injection Pressure |
Mpa |
244 |
213 |
|
Screw Speed |
Rpm |
0-220 |
|
Clamp Tonnage |
KN |
500 |
|
MouldingBoardMovement |
mm |
240 |
|
SpaceBetweenTie-bars(W*H) |
mm |
280*260 |
|
Max Mould Thickness |
mm |
290 |
|
Min Mould Thickness |
mm |
100 |
|
Ejector Distance |
mm |
61 |
|
Ejector Tonnage |
KN |
27 |
|
Max Pump Pressure |
Mpa |
16 |
|
Pump Motor Power |
KW |
5.5 |
|
Hester Power |
KW |
3.45 |
|
Machine Dimensions(L*W*H) |
m*m*m |
3*1.25*1.7 |
|
Machine Weight |
T |
1.6 | |
|
|
|
